Data Visualisation with ggplot2

Last updated on 2025-12-04 | Edit this page

Overview

Questions

What are the components of a ggplot?
How do I create scatterplots, boxplots, and barplots?
How can I change the aesthetics (ex. colour, transparency) of my plot?
How can I create multiple plots at once?

Objectives

Understand the basic syntax of the ggplot function.
Produce scatter plots, boxplots, and time series plots using ggplot.
Set universal plot settings.
Describe what faceting is and apply faceting in ggplot.
Modify the aesthetics of an existing ggplot plot (including axis labels and color).
Build complex and customized plots from data in a data frame.

Getting set up

Set up your directories and data

If you have not already done so, open your R Project file (library_carpentry.Rproj) created in the Before We Start lesson. Ensure that you have the following sub-directories in your Rproj: data\, data_output\ and fig_output\.

Run the following code chunk to create the sub-directories and download the dataset.

R

library(fs)   # https://fs.r-lib.org/.  fs is a cross-platform, uniform interface to file system operations via R.
dir_create("data")
dir_create("data_output")
dir_create("fig_output")
download.file("https://ndownloader.figshare.com/files/22031487",
              "data/books.csv", mode = "wb")
download.file("https://ndownloader.figshare.com/files/22051506",
              "data_output/books_reformatted.csv", mode = "wb")

Then load the packages required for this lesson.

R

library(tidyverse)  # load the core tidyverse

OUTPUT

── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
✔ dplyr     1.1.4     ✔ purrr     1.1.0
✔ forcats   1.0.1     ✔ stringr   1.5.2
✔ ggplot2   4.0.0     ✔ tibble    3.3.0
✔ lubridate 1.9.4     ✔ tidyr     1.3.1
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()
ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors

R

library(lubridate)  # load lubridate

Thelubridate package is installed with the tidyverse, but is not one of the core tidyverse packages loaded with library(tidyverse), so it needs to be explicitly called. lubridate makes working with dates and times easier in R.

We also load the books_reformatted data we saved in the previous lesson. Here, we’ll assign it to books2. You can create the reformatted data by running the codes from here or by loading the saved CSV file from previous episode.

R

books2 <- read_csv("data_output/books_reformatted.csv")  # load the data and assign it to books

Plotting with `ggplot2`

Base R contains a number of functions for quick data visualization such as plot() for scatter plots, barplot(), hist() for histograms, and boxplot(). However, just as data manipulation is easier with dplyr than Base R, so data visualization is easier with ggplot2 than Base R. ggplot2 is a “grammar” for data visualization also created by Hadley Wickham, as an implementation of Leland Wilkinson’s Grammar of Graphics.

ggplot is a plotting package that makes it simple to create complex plots from data stored in a data frame. It provides a programmatic interface for specifying what variables to plot, how they are displayed, and general visual properties. Therefore, we only need minimal changes if the underlying data change or if we decide to change from a bar plot to a scatterplot. This helps in creating publication quality plots with minimal amounts of adjustments and tweaking.

Callout

Tips on plotting with ggplot2:

ggplot2 functions like data in the ‘long’ format, i.e., a column for every dimension, and a row for every observation. Well-structured data will save you lots of time when making figures with ggplot2

ggplot graphics are built step by step by adding new elements. Adding layers in this fashion allows for extensive flexibility and customization of plots.

To build a ggplot, we will use the following basic template that can be used for different types of plots:

ggplot(data = <DATA>, mapping = aes(<MAPPINGS>)) +  <GEOM_FUNCTION>()

The data argument is used to bind the plot to a specific data frame in ggplot2.
The mapping argument defines the variables mapped to various aesthetics of the plot, e.g. the x and y axis.
The geom_function argument defines the type of plot, e.g. barplot, scatter plot, boxplot.

::::::::::::::::::::::::::::::::::::::::::::; callout

`ggplot2` versus `ggplot`

People are sometimes confused between ggplot2 and ggplot. The former refers to the name of the package, while the latter refers to the function that you run.

:::::::::::::::::::::::::::::::::::::::::

When you run the ggplot() function, it plots directly to the Plots tab in the Navigation Pane (lower right). Alternatively, you can assign a plot to an R object, then call print()to view the plot in the Navigation Pane.

Creating your first plot

Let’s create a booksPlot and limit our visualization to only items in subCollection general collection, juvenile, and k-12, and filter out items with NA in call_class. We do this by using the | key on the keyboard to specify a boolean OR, and use the !is.na() function to keep only those items that are NOT NA in the call_class column.

R

# create a new data frame
booksPlot <- books2 %>%
  filter(subCollection == "general collection" |
           subCollection == "juvenile" |
           subCollection == "k-12 materials",
         !is.na(call_class))

To start with, we first bind our data to the ggplot() function using the data argument.

R

ggplot(data = booksPlot)  # a blank canvas

After running this code, a blank canvas is being created. Next, we define a mapping aesthetic with the mapping argument (using the aesthetic (aes()) function). This defines the variables to be plotted and specifies how to present them in the graph, e.g. as x/y positions or characteristics such as size, shape, color, etc.

R

ggplot(data = booksPlot, mapping = aes(x = call_class)) # define the x axis aesthetic

Here we define the x axes, but because we have not yet added any geoms, we still do not see any data being visualized.

Defining the `geoms`

Data is visualized with different “geometric shapes” such as bars and lines; what are called geoms. In your console, type geom_ and press the tab key to see the geoms included–there are over 30. For example:

geom_point() for scatter plots, dot plots, etc.
geom_boxplot() for boxplots
geom_bar() for barplots
geom_line() for trend lines, time series, etc.

Each geom takes a mapping argument within the aes() call. This is called the aesthetic mapping argument. In other words, inside the geom function is an aes() function, and inside aes() is a mapping argument specifying how to map the variables inside the visualization. ggplot then looks for that variable inside the data argument, and plots it accordingly.

For example, in the below expression, the call_class variable is being mapped to the x axis in the geometric shape of a bar. In this example, the y axis (count) is not specified, nor is it a variable in the original dataset, but is the result of geom_bar() binning your data inside each call number class and plotting the bin counts (the number of items falling into each bin).

To add a geom to the plot use the + operator.

R

# add a bar geom and set call_class as the x axis
ggplot(data = booksPlot, mapping = aes(x = call_class)) +
  geom_bar()

We can see that there are about 1,500 books in the H class, 1,000 books in the P class, 700 books in the E class, etc. As we shall see, the number of E and F books are deceptively large, as easy books and fiction books both begin with E and are thus lumped into that category, though they are not of the E and F Library of Congress call number classification.

Callout

`ggplot` tips

Anything you put in the ggplot() function can be seen by any geom layers that you add (i.e., these are universal plot settings). This includes the x- and y-axis mapping you set up in aes().
You can also specify mappings for a given geom independently of the mapping defined globally in the ggplot() function.
The + sign used to add new layers must be placed at the end of the line containing the previous layer. If, instead, the + sign is added at the beginning of the line containing the new layer, ggplot2 will not add the new layer and will return an error message.

Applying a different geom

This same exact data can be visualized in a couple different ways by replacing the geom_histogram() function with either geom_density() (adding a logarithmic x scale) or geom_freqpoly():

R

# create a density plot
ggplot(data = booksPlot) +
  geom_density(aes(x = tot_chkout)) +
  scale_y_log10() +
  scale_x_log10()

WARNING

Warning in scale_x_log10(): log-10 transformation introduced infinite values.

WARNING

Warning: Removed 2348 rows containing non-finite outside the scale range
(`stat_density()`).

R

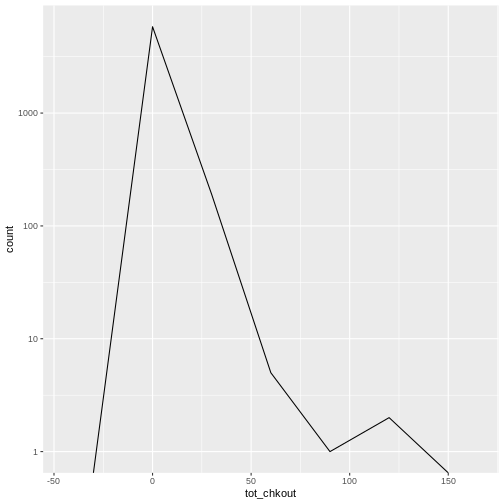

# create a frequency polygon
ggplot(data = booksPlot) +
  geom_freqpoly(aes(x = tot_chkout), binwidth = 30) +
  scale_y_log10()

WARNING

Warning in scale_y_log10(): log-10 transformation introduced infinite values.

Univariate and bivariate geoms

Univariate geoms

“Univariate” refers to a single variable. A histogram is a univariate plot: it shows the frequency counts of each value inside a single variable. Let’s say we want to visualize a frequency distibution of checkouts in the booksPlot data. In other words, how many items have 1 checkout? How many have 2 checkouts? And so on.

R

ggplot(data = booksPlot, mapping = aes(x = tot_chkout)) +
  geom_histogram()

OUTPUT

`stat_bin()` using `bins = 30`. Pick better value `binwidth`.

As we have seen in previous lessons, the overwhelming majority of books have a small amount of usage, so the plot is heavily skewed. As anyone who has done collection analysis has encountered, this is a very common issue. It can be addressed in two ways:

First, add a binwidth argument to aes(). In a histogram, each bin contains the number of occurrences of items in the data set that are contained within that bin. As stated in the documentation for ?geom_histogram, “You should always override this value, exploring multiple widths to find the best to illustrate the stories in your data.”

Second, change the scales of the y axes by adding another argument to ggplot:

R

ggplot(data = booksPlot) +
  geom_histogram(aes(x = tot_chkout), binwidth = 10) +
  scale_y_log10()

WARNING

Warning in scale_y_log10(): log-10 transformation introduced infinite values.

Notice the scale y axis now goes from 0-10, 10-100, 100-1000, and 1000-10000. This is called “logarithmic scale” and is based on orders of magnitude. We can therefore see that over 5,000 books (on the y axis) have between 0-10 checkouts (on the x axis), 1,000 books have 10-20 checkouts, and further down on the x axis, a handful of books have 60-70 checkouts, and a handful more have around 100 checkouts.

We can check this with table():

R

table(booksPlot$tot_chkout)

OUTPUT


   0    1    2    3    4    5    6    7    8    9   10   11   12   13   14   15
2348  875  638  464  362  282  199  146  118   97   84   50   41   46   40   33
  16   17   18   19   20   21   22   23   24   25   26   27   28   29   30   31
  17   20   26   17   14   12    7   15    7    8    6    6    3    3    2    4
  32   33   34   35   36   38   39   40   41   43   47   61   63   69   79  106
   1    5    4    3    2    2    3    1    1    1    1    1    2    1    1    1
 113
   1

ggplot has thus given us an easy way to visualize the distribution of checkouts. If you test this on your own print and ebook usage data, you will likely find something similar.

Bivariate geoms

Bivariate plots visualize two variables. Let’s take a look at some higher usage items, but first eliminate the NA values and keep only items with more than 10 checkouts, which we will do with filter() from the dplyr package and assign it to booksHighUsage.

R

# filter booksPlot to include only items with over 10 checkouts
booksHighUsage <- booksPlot %>%
  filter(!is.na(tot_chkout),
                tot_chkout > 10)

We then visualize checkouts by call number with a scatter plot. There is still so much skew that I retain the logarithmic scale on the y axis with scale_y_log10().

R

# scatter plot high usage books by call number class
ggplot(data = booksHighUsage,
       aes(x = call_class, y = tot_chkout)) +
  geom_point() +
  scale_y_log10()

Again, notice the scale on the y axis. We can obseve a few items of interest here: No items in the D, J, M, and Z class have more than 30 checkouts. An item in the E class has the most checkouts with over 100, but, as noted above, this includes Easy books classified with E, not just items with Library of Congress E classification (United States history) an issue we’ll look at further down.

Just as with univariate plots, we can use different geoms to view various aspects of the data, which in turn reveal different patterns.

R

# boxplot plot high usage books by call number class
ggplot(data = booksHighUsage,
       aes(x = call_class, y = tot_chkout)) +
  geom_boxplot() +
  scale_y_log10()

By adding points to a boxplot, we can have a better idea of the number of measurements and of their distribution. Here we set the boxplot alpha to 0, which will make it see-through. We also add another layer of geom to the plot called geom_jitter(), which will introduce a little bit of randomness into the position of our points. We set the color of these points to "tomato".

R

ggplot(data = booksHighUsage, aes(x = call_class, y = tot_chkout)) +
  geom_boxplot(alpha = 0) +
  geom_jitter(alpha = 0.5, color = "tomato") +
  scale_y_log10()

Notice how the boxplot layer is behind the jitter layer? What do you need to change in the code to put the boxplot in front of the points such that it’s not hidden?

Challenge

Plotting Exercise

Boxplots are useful summaries, but hide the shape of the distribution. For example, if the distribution is bimodal, we would not see it in a boxplot. An alternative to the boxplot is the violin plot, where the shape (of the density of points) is drawn.

Replace the box plot with a violin plot; see geom_violin().

Show me the solution

R

ggplot(data = booksHighUsage, aes(x = call_class, y = tot_chkout)) +
  geom_violin(alpha = 0) +
  geom_jitter(alpha = 0.5, color = "tomato")

WARNING

Warning: Groups with fewer than two datapoints have been dropped.
ℹ Set `drop = FALSE` to consider such groups for position adjustment purposes.
Groups with fewer than two datapoints have been dropped.
ℹ Set `drop = FALSE` to consider such groups for position adjustment purposes.
Groups with fewer than two datapoints have been dropped.
ℹ Set `drop = FALSE` to consider such groups for position adjustment purposes.
Groups with fewer than two datapoints have been dropped.
ℹ Set `drop = FALSE` to consider such groups for position adjustment purposes.
Groups with fewer than two datapoints have been dropped.
ℹ Set `drop = FALSE` to consider such groups for position adjustment purposes.

Challenge

Plotting Exercise (continued)

Add color to the geom_jitter argument on your boxplot according to the item subCollection. Hint: If you get the error object 'subCollection' not found or invalid color name 'subCollection' then consider color as an aesthetic mapping.

Show me the solution

R

ggplot(data = booksHighUsage, aes(x = call_class, y = tot_chkout)) +
geom_violin(alpha = 0) +
geom_jitter(alpha = 0.5, aes(color = subCollection)) +
scale_y_log10()

WARNING

Warning: Groups with fewer than two datapoints have been dropped.
ℹ Set `drop = FALSE` to consider such groups for position adjustment purposes.
Groups with fewer than two datapoints have been dropped.
ℹ Set `drop = FALSE` to consider such groups for position adjustment purposes.
Groups with fewer than two datapoints have been dropped.
ℹ Set `drop = FALSE` to consider such groups for position adjustment purposes.
Groups with fewer than two datapoints have been dropped.
ℹ Set `drop = FALSE` to consider such groups for position adjustment purposes.
Groups with fewer than two datapoints have been dropped.
ℹ Set `drop = FALSE` to consider such groups for position adjustment purposes.

Challenge

Plotting Exercise (continued)

So far, we’ve looked at the distribution of checkouts within call number ranges. Try making a new plot to explore the distribution of checkouts within another variable.

Still using the booksHighUsage data, create a boxplot for tot_chkout for each subCollection. Overlay the boxplot layer on a jitter layer to show actual measurements. Keep the scale_y_log10 argument.

Show me the solution

R

ggplot(data = booksHighUsage, aes(x = subCollection, y = tot_chkout)) +
 geom_boxplot(alpha = 0) +
 geom_jitter(alpha = 0.5, color = "tomato") +
 scale_y_log10()

Add a third variable

As we saw in that exercise, you can convey even more information in your visualization by adding a third variable, in addition to the first two on the x and y scales.

We can use arguments in aes() to map a visual aesthetic in the plot to a variable in the dataset. Specifically, we will map color to the subCollection variable. Because we are now mapping features of the data to a color, instead of setting one color for all points, the color now needs to be set inside a call to the aes function. ggplot2 will provide a different color corresponding to different values in the vector. In other words, associate the name of the aesthetic (color) to the name of the variable (subCollection) inside aes():

R

ggplot(data = booksHighUsage,
       aes(x = call_class,
           y = tot_chkout,
           color = subCollection)) +
  geom_point() +
  scale_y_log10()

ggplot() automatically assigns a unique level of the aesthetic to each unique value of the variable (this is called scaling). Now we reveal indeed that youth materials make up a large number of high usage items in both the E and the P class.

Use fill() with geom_bar() to create a stacked bar plot to visualize frequency. Again, this reinforced the fact that most of the E and P classification are youth materials.

R

ggplot(data = booksHighUsage, aes(x = call_class)) +
  geom_bar(aes(fill = subCollection))

Stacked bar charts are generally more difficult to read than side-by-side bars. We can separate the portions of the stacked bar that correspond to each village and put them side-by-side by using the position argument for geom_bar() and setting it to “dodge”.

R

ggplot(data = booksHighUsage, aes(x = call_class)) +
  geom_bar(aes(fill = subCollection), position = "dodge")

The order of the classification scale is sorted for “library order.” The audience of library professionals typically prefer an alphabetical arrangement. However, the x-axis variable is actually categorical. Categorical data are easier to read when the bars are sorted by frequency. An easy way to sort by frequency is to use the fct_infreq() function from the forcats library.

R

ggplot(data = booksHighUsage, aes(x = fct_infreq(call_class))) +
  geom_bar()

Another visualization issue is labeling. In many cultures, long labels are easier to read horizontally. Our goal is to flip the x-axis and reorient the x-axis labels into a horizontal presentation. To accomplish this, flip the axis coordinates with the coord_flip() function. When we flip the axes it’s important to reverse the sorted categorical order. Do this with forcats::fct_rev().

R

ggplot(data = booksHighUsage, aes(x = fct_rev(fct_infreq(call_class)))) +
  geom_bar() +
  coord_flip()

Plotting time series data

Let’s calculate number of counts per year for each format for items published after 1990 and before 2002 in the booksHighUsage data frame created above.

First, we use the ymd() function from the lubridate package to convert our publication year into a POSIXct object. Pass the truncated = 2 argument as a way to indicate that the pubyear column does not contain month or day. This means 1990 becomes 1990-01-01. This will allow us to plot the number of books per year.

We will do this by calling mutate() to create a new variable pubyear_ymd.

R

booksPlot <- booksPlot %>%
  mutate(pubyear_ymd = ymd(pubyear, truncated = 2))  # convert pubyear to a Date object with ymd()

class(booksPlot$pubyear)  # integer

OUTPUT

[1] "numeric"

R

class(booksPlot$pubyear_ymd)  # Date

OUTPUT

[1] "Date"

Next, we can use filter to remove the NA values and get books published between 1990 and 2003. Notice that we use the & as an AND operator to indicate that the date must fall between that range. We then need to group the data and count records within each group.

R

yearly_counts <- booksPlot %>%
  filter(!is.na(pubyear_ymd),
         pubyear_ymd > "1989-01-01" & pubyear_ymd < "2002-01-01") %>%
  count(pubyear_ymd, subCollection)

Time series data can be visualized as a line plot with years on the x axis and counts on the y axis:

R

ggplot(data = yearly_counts, mapping = aes(x = pubyear_ymd, y = n)) +
     geom_line()

Unfortunately, this does not work because we plotted data for all the sub-collections together. We need to tell ggplot to draw a line for each sub-collection by modifying the aesthetic function to include group = subCollection:

R

ggplot(data = yearly_counts, mapping = aes(x = pubyear_ymd, y = n, group = subCollection)) +
    geom_line()

We will be able to distinguish sub-collections in the plot if we add colors (using color also automatically groups the data):

R

ggplot(data = yearly_counts, mapping = aes(x = pubyear_ymd, y = n, color = subCollection)) +
  geom_line()

Faceting

Rather than creating a single plot with side-by-side bars for each sub-collection, we may want to create multiple plots, where each plot shows the data for a single sub-collection. This would be especially useful if we had a large number of sub-collections that we had sampled, as a large number of side-by-side bars will become more difficult to read.

ggplot2 has a special technique called faceting that allows the user to split one plot into multiple plots based on a factor included in the dataset.

There are two types of facet functions:

facet_wrap() arranges a one-dimensional sequence of panels to allow them to cleanly fit on one page.
facet_grid() allows you to form a matrix of rows and columns of panels.

Both geometries allow to to specify faceting variables specified within vars(). For example, facet_wrap(facets = vars(facet_variable)) or facet_grid(rows = vars(row_variable), cols = vars(col_variable)).

Here we use facet_wrap() to make a time series plot for each subCollection:

R

ggplot(data = yearly_counts, mapping = aes(x = pubyear_ymd, y = n)) +
    geom_line() +
    facet_wrap(facets = vars(subCollection))

Three line plots, one each for general collection, juvenile, and K-12 sub-collection materials, showing the relationship of count of books to publication year

We can use facet_wrap() as a way of seeing the categories within a variables. Look at the number of formats per sub-collection.

R

ggplot(data = books2, aes(x = fct_rev(fct_infreq(subCollection)))) +
  geom_bar() +
  facet_wrap(~ format, nrow = 2) +
  scale_y_log10() +
  coord_flip() +
  labs(x = "Library subcollection", y = "")

While this may not be the most beautiful plot, these kinds of exercises can be helpful for data exploration. We learn that there are books in all sub-collections; there are CD-ROMS, serials, images, and microforms in government documents, and so on. Exploratory plots visually surface information about your data that are otherwise difficult to parse. Sometimes they may not meet all the rules for creating beautiful data, but when you are simply getting to know your data, that’s OK.

Challenge

Use the books2 data to create a bar plot that depicts the number of items in each sub-collection, faceted by format. Add the scale_y_log10() argument to create a logarithmic scale for easier visibility. Add the following theme argument to tilt the axis text diagonal: theme(axis.text.x = element_text(angle = 60, hjust = 1))

Show me the solution

R

ggplot(data = books2, aes(x = subCollection)) +
geom_bar() +
facet_wrap(vars(format)) +
scale_y_log10() +
theme(axis.text.x = element_text(angle = 60, hjust = 1))

`ggplot2` themes

Usually plots with white background look more readable when printed. Every single component of a ggplot graph can be customized using the generic theme() function. However, there are pre-loaded themes available that change the overall appearance of the graph without much effort.

For example, we can change our graph to have a simpler white background using the theme_bw() function:

R

#
ggplot(data = yearly_counts, mapping = aes(x = pubyear_ymd, y = n)) +
  geom_line() +
  facet_wrap(facets = vars(subCollection)) +
  theme_bw()

In addition to theme_bw(), which changes the plot background to white, ggplot2 comes with several other themes which can be useful to quickly change the look of your visualization. The complete list of themes is available at https://ggplot2.tidyverse.org/reference/ggtheme.html. theme_minimal() and theme_light() are popular, and theme_void() can be useful as a starting point to create a new hand-crafted theme.

The ggthemes package provides a wide variety of options. The ggplot2 extensions website provides a list of packages that extend the capabilities of ggplot2, including additional themes.

Customization

Take a look at the ggplot2 cheat sheet, and think of ways you could improve your plots.

For example, by default, the axes labels on a plot are determined by the name of the variable being plotted. We can change names of axes to something more informative than ‘pubyear_ymd’ and ‘n’ and add a title to the figure:

R

# add labels
ggplot(data = yearly_counts, mapping = aes(x = pubyear_ymd, y = n)) +
  geom_line() +
  facet_wrap(facets = vars(subCollection)) +
  theme_bw() +
    labs(title = "Number of High Usage Books per Year of Publication, by Sub-Collection",
        x = "Year of publication",
        y = "Number of books")

Note that it is also possible to change the fonts of your plots. If you are on Windows, you may have to install the extrafont package, and follow the instructions included in the README for this package.

You can also assign a theme to an object in your environment, and pass that theme to your plot. This can be helpful to keep your ggplot() calls less cluttered. Here we create a gray_theme :

R

# create the gray theme
gray_theme <- theme(axis.text.x = element_text(color = "gray20", size = 12, angle = 45, hjust = 0.5, vjust = 0.5),
                    axis.text.y = element_text(color = "gray20", size = 12),
                    text = element_text(size = 16),
                    plot.title = element_text(hjust = 0.5))

# pass the gray theme to a plot
ggplot(data = yearly_counts, mapping = aes(x = pubyear_ymd, y = n)) +
  geom_line() +
  facet_wrap(facets = vars(subCollection)) +
  gray_theme +
  labs(title = "Number of High Usage Books per Year of Publication, \n by Sub-Collection",
        x = "Year of publication",
        y = "Number of books")

Challenge

Use the booksPlot data to create a plot that depicts how the total number of checkouts changes based on year of publication.

First, create a data frame yearly_checkouts That meets the following conditions:

filter() to exclude NA values
filter() between “1989-01-01” and “2002-01-01”
group_by() the publication year (make sure to use the special Date pubyear value we created)
summarize() to create a new value checkouts_sum that represents the sum() of total checkouts per publication year

Then, create a ggplot that visualizes the sum of item checkouts by year of publication. Add one of the themes listed above.

Show me the solution

R

yearly_checkouts <- booksPlot %>%
 filter(!is.na(pubyear_ymd),
        pubyear_ymd > "1989-01-01" & pubyear_ymd < "2002-01-01") %>%
 group_by(pubyear_ymd) %>%
 summarize(checkouts_sum = sum(tot_chkout))

ggplot(data = yearly_checkouts, mapping = aes(x = pubyear_ymd, y = checkouts_sum)) +
 geom_line() +
 theme_bw()

Save and export

After creating your plot, you can save it to a file in your favorite format. The Export tab in the Plot pane in RStudio will save your plots at low resolution, which will not be accepted by many journals and will not scale well for posters.

Instead, use the ggsave() function, which allows you easily change the dimension and resolution of your plot by adjusting the appropriate arguments (width, height and dpi). We have been printing our plot output directly to the console. To use ggsave(), first assign the plot to a variable in your R environment, such as yearly_counts_plot.

Make sure you have the fig_output/ folder in your working directory.

R

yearly_counts_plot <- ggplot(data = yearly_counts, mapping = aes(x = pubyear_ymd, y = n)) +
  geom_line() +
  facet_wrap(facets = vars(subCollection)) +
  gray_theme +
  labs(title = "Number of High Usage Books per Year of Publication, \n by Sub-Collection",
        x = "Year of publication",
        y = "Number of books")

ggsave("fig_output/yearly_counts_plot.png", yearly_counts_plot, width = 15, height = 10)

Discussion

Exercise

With all of this information in hand, please take another five minutes to either improve one of the plots generated in this exercise or create a beautiful graph of your own. Use the RStudio ggplot2 cheat sheet for inspiration. Here are some ideas:

See if you can make the bars white with black outline.
Try using a different color palette (see http://www.cookbook-r.com/Graphs/Colors_(ggplot2)/).

Key Points

ggplot2 is a flexible and useful tool for creating plots in R.
The data set and coordinate system can be defined using the ggplot function.
Additional layers, including geoms, are added using the + operator.
Boxplots are useful for visualizing the distribution of a continuous variable.
Barplot are useful for visualizing categorical data.
Faceting allows you to generate multiple plots based on a categorical variable.

Data Visualisation with ggplot2

Overview

Questions

Objectives

Getting set up

Set up your directories and data

R

R

OUTPUT

R

R

Plotting with ggplot2

Tips on plotting with ggplot2:

ggplot2 versus ggplot

Creating your first plot

R

R

R

Defining the geoms

R

ggplot tips

Applying a different geom

R

WARNING

WARNING

R

WARNING

Univariate and bivariate geoms

Univariate geoms

R

OUTPUT

R

WARNING

R

OUTPUT

Bivariate geoms

R

R

R

R

Plotting Exercise

Show me the solution

R

WARNING

Plotting Exercise (continued)

Show me the solution

R

WARNING

Plotting Exercise (continued)

Show me the solution

R

Add a third variable

R

R

R

R

R

Plotting time series data

R

OUTPUT

R

OUTPUT

R

R

R

R

Faceting

R

R

Challenge

Show me the solution

R

ggplot2 themes

R

Customization

R

R

Challenge

Show me the solution

R

Plotting with `ggplot2`

`ggplot2` versus `ggplot`

Defining the `geoms`

`ggplot` tips

`ggplot2` themes
